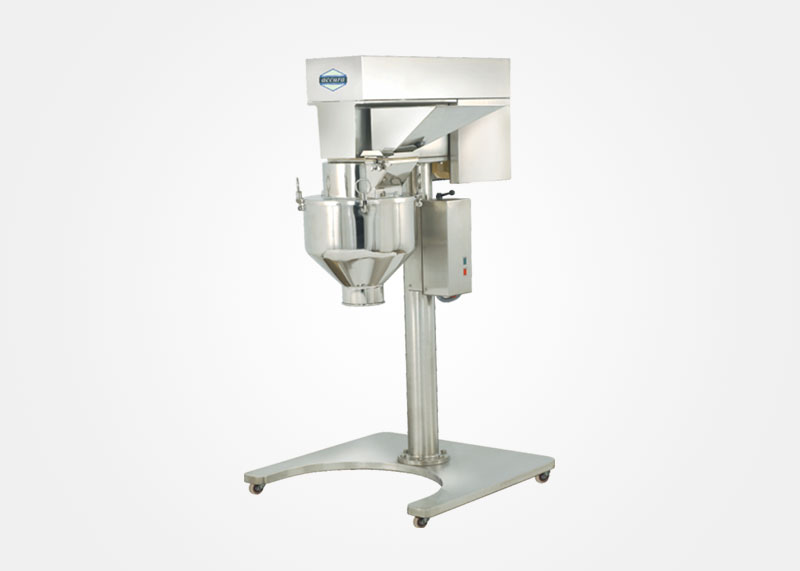

Multi Mill “ACCURA” MODEL

Product Description

The Multi Mill ‘Accura’ Model is versatile machinery suitable for dry pulverizing of lumps to smaller particles of the desired size by the use of sheer action. Multi Mill machines require less space and are easy to be cleaned and multi-mill manufacturers provide a superior quality machine with a wide option of speed to run. Its operational advantage is incomparable because it uses a cylindrical drum for higher output and can be run for a long time continuously. The multi mill machine offered by FLUIDPACK is of the model which can provide crushing up to 100 mesh. The Multiple combinations of Screens, Speeds, and Number of Blades add up to the efficiency of this multi-mill while supporting the function of a reversible switch to change the direction of the beater.

  • cGMP Model with Crushing upto 100 mesh
  • Direction of beaters can be changed by reversible switch.
  • All contact parts can be easily and quickly dismantled and cleaned.
  • Cylindrical screen for higher output.
  • Salient Features
  • Technical Specification
  • cGMP point of view machine is provided with SS cladding on base, pillar, machine chamber, SS cover on motor. No exposed painted surface on top of the machine.
  • Beaters and shaft are of stainless steel 304 quality and beaters are further hardened and hard chrome plated. Beaters are fitted on a shaft.
  • Direction of beaters can be changed by reversible switch.
  • Beaters assembly is swing type, dynamically balanced which reduces vibration and noise level and increases bearing life.
  • 12 nos. Beaters are of knife and impact edges & 2 nos. beaters are of scrapper blades types.
  • All contact parts are of SS 304 quality and can be easily & quickly dismantled and cleaned.
  • Cylindrical screen for higher output.
  • Flameproof electrical components can be provided at extra cost.
Model ACRA-MM-200
Out put * 50 kgs To 200 kgs/ Hour.
Rotor Assembly Dia 250 (Approx)
Rotor Speed 750/1500/2300/3000 R.P.M.
Beaters 12 knife & impact edges & 2 Scrapper Blades
Screen Dimensions INNER DIAMETER – 260 mm HT- 135mm
Motor 3.0 HP, 1440 RPM, 440 V 50Hz, 3 Phase
Starter "DOL" with reversible switch
Material Charging Height 1445 mm (Approx)
Overall Dimensions (mm) 870 x 965 x 1630 mm (H)
Net Weight 275 KGS (Approx)
Gross Weight 425 KGS (Approx)
Case Dimensions (mm) 1200 mm X 1250 mm X 1860 mm (ht)
