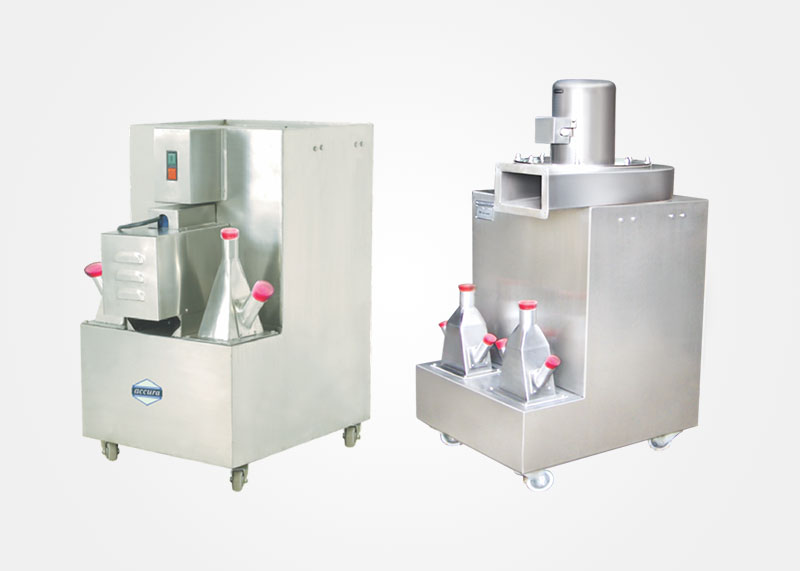

“ACCURA” MODEL Dust Extractor (300 CFM, cGMP MODEL)

Product Description

  • cGMP Dust Extractor Model
  • With Multi functional Nozzles
  • With High Viscose cloth bags having shaking arrangement
  • Flexible for special applications for lighter process dust problem
  • Salient Features
  • Technical Specification
  • Dust Extractor Machine control the flying dust generated during the compression of tablets.
  • With the use of this unit flying, dust is kept to minimum but it is difficult to eliminate entirely
  • Provided with stainless steel S.S 304 contact parts (SS 316-Optional)
  • Blower fan is dynamically balanced.
  • Machine in fitted with the castor wheels for easy mobility.
  • Overcome dust hazards as well as cross contamination at tablet compression.
  • Minimizes mechanical strain, excessive wear of tableting machine – resulting in minimum machine break-downs and punch wears.
  • All inlet manifolds and dust collection trays are of SS 304
  • Four inlet manifolds facilitate to connect any Tablet press machine and two for De-burring units.
  • Handle type shaking arrangements for Cleanning the filter bags.
  • Filter bags are of high viscose quality.
MODEL ACRA-DE-150
Suction Capacity 150 C.F.M.
Inlet Connection 4 Nos of Dia 1 ½” (38.1)
Electrical Motor 1 H.P. 2800 RPM 440 V., 50 Hz, 3 Phase
Overall Dimensions 28” (L) X 19” (W) X 32” (H)
Case Dimensions (mm) 660 (L) x 470 (W) x 745 (H)
Net Weight 80 KGS
Gross Weight 100 KGS
Dust Storage Capacity 25 Ltrs.
