TYPE

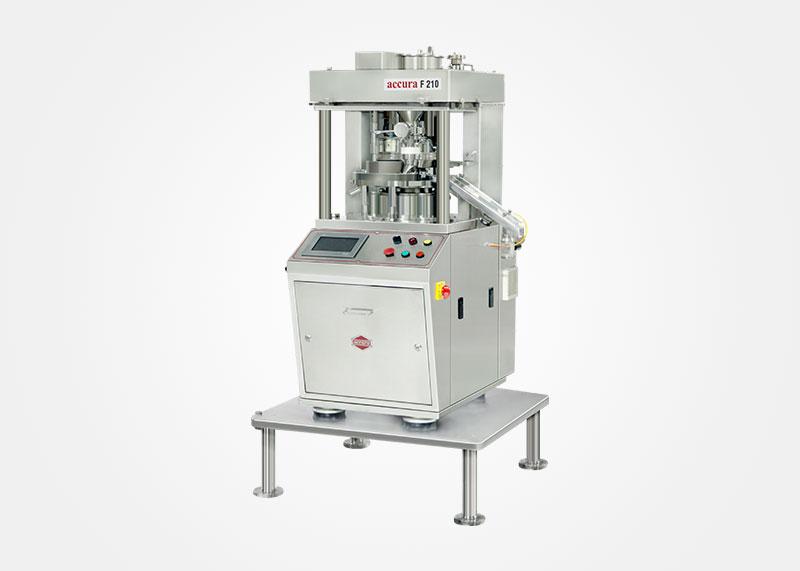

ACCURA F 210 COMBO

Number of Station

10

Type of Tooling (As per EU1)

D

Output-tablets/hour (Min / Max.)

6000 / 21600

Turret RPM (Min. - Max.) (Single Layer)

10 - 36

Max. Operating pressure-Main (Max.)

65 kN (6.5 Ton)

Max. Operating pressure-Pre. (Max.)

65 kN (6.5 Ton)

Max. Tablet Diameter (mm)

22

Depth of fill (mm)

20.5

Upper punch entry Main (mm)

2 To 6

Upper punch entry Pre-Compression(mm)

1 To 5

Power-Total (kW/hp)

2.25/3

Main Ele. Motor (kW/hp)

2.25/3, x 1400 RPM

Hopper Capacity

4  Litres

Overall dimensions(Close guard) cm

90L x 72W x 140H

Case dimensions (cm)

115L x 90W x 155H

Net weight (kg)

Approx. 880

Gross weight(kg)

Approx. 1100

Utilities :

1) Suction Air       :-  150 CFM

2) Compressed Air :- 5 kg/cm2 (5 Bar)

3) Power Supply :-  a) 415 V / 3 Phase / 50 Hz

                                b) 480 V / 3 Phase / 60 Hz

                                c) 220 V / 3 Phase / 60 Hz
